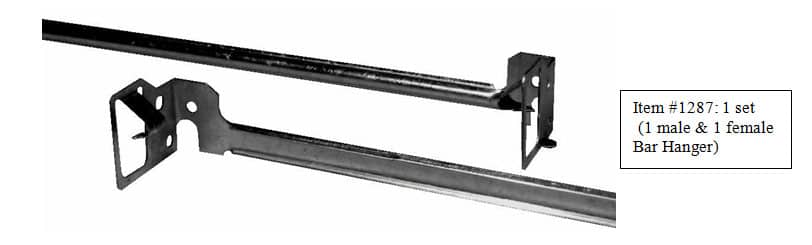

We are pleased to offer our new and innovative bar hangers. Incorporating the best features found amongst existing bar hangers, and adding several new innovations, these will rapidly set a new standard in bar hangers.

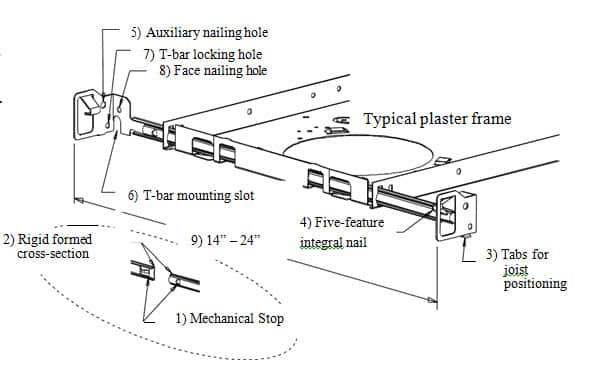

Features include:
- Mechanical interference to prevent them from slipping apart, yet if necessary, this can be overcome with a solid
- Formed cross sections offer superior
- Contains small outward extending tabs for positioning flush with underside of joists
- Contains integral nails, which are:
– located as far away as possible from the main bar to permit easy nailing.
– oriented parallel to joist wood grain for easier installation.
– toothed to resist pullout.
– the sharpest available achieved through a proprietary process.
– retracted and surrounded for added safety prior to installation - Contains auxiliary nailing hole for added retention, also located far from the main bar to permit easy nailing.
- Contains slots for engagement with suspended ceiling T-bar, whose depth lets the plaster frame sit flush with the underside of ceiling panels.
- Contains hole for locking hangers to T-bar using #8 self-tapping screw
- Contains second auxiliary face nailing hole for transverse or other unusual mounting orientations.
- Extendable from 14” to 24” centers.
Made in progressive dies for the most competitive pricing. Tripar’s Engineering Team conducted load testing on our 1287 Bar Hanger vs. our 1487 Commercial L-Bar Hanger. Click here to see the results of this test.
For more information, please contact us at sales@triparinc.com.
